We can provide round- or rectangular shaped lifting magnets in various sizes and configurations for handling of ferro-magnetic materials.

The magnets are designed to fit the specific needs of scrap processing with maximum lifting capacity.

For further options, benefits and advantages of magnets see our affiliated company WOKO Magnet- und Anlagebau GmbH at www.woko.de

Pictures of some options

Pictures of some options


Round magnet attached at mobile scrap handling machine		Round magnet suspended by chain for scrap handling mobile cranes


Round magnet suspended by chain for scrap handling		Round magnet suspended by chain for scrap handling


Round magnet suspended by chain for scrap handling

Technical Data Sheets

Technical Data Sheets

Print Email

Hydraulic and Mechanical Operated Bulk Material Grabs and hydraulic and Mechanical Operated Orange Peel Grabs are designed for the handling of most common bulk material such as scrap, waste, construction- and recycling material and scrap metal.

The grabs are designed for the use in the presence of dust and dirt. Special solutions are available for material with specific properties and for underwater work.

The installation is simple on all machines with a lifting hook and electrical- or hydraulic system, ideal for application to overhead crane, mobile cranes, etc.

Available Options

Available Options

Applicable for underwather works
Rotation unit
Dragline operation

Pictures of different Types

Pictures of different Types

Grapples


Hydraulic operated orange peel grapple.		Hydraulic operated orange peel grapple.

Bulks

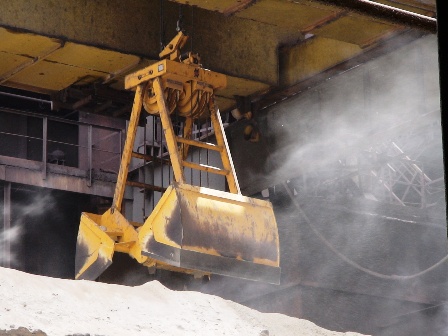

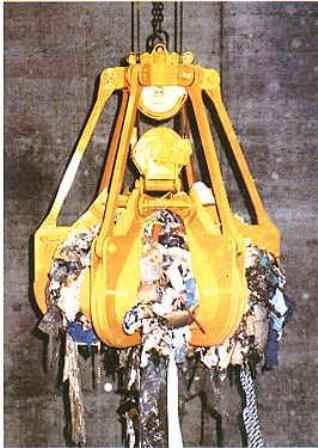

Dragline operated grab for waste.		Dragline operated grab for bulk material.

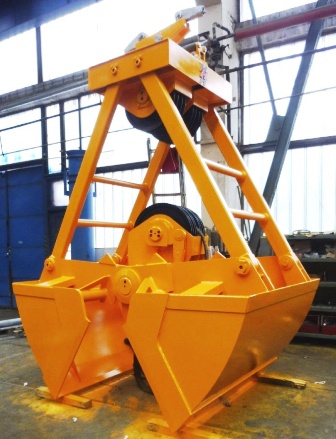

Clam shell grab for bulk material.

Video Grab 4.5m³

Video Grab 4.5m³

Benefits & Advantages

Benefits & Advantages

Advantages:

Easily removable wear components
Tong suspension designed for Standard Single Hook according to DIN 15401
All tongs are individually designed and calculated
All kind of suspensions are possible such as sister hook, beam, sheaves etc
Engineering and manufacturing in accordance with international standards (CE, ISO, UW, OSHA) ROSTEKHNADZOR permission

Benefits:

Short maintenance times
Minimum inherent weight of the tong
Long working life of the tongs
Existing crane hooks or beams can be used without modification
A state-of-the-art product according to international Standards

Technical Data Sheets

Technical Data Sheets

Print Email

The optimal power supply unit (PSU) for each application.
The generator for the power supply of the magnet system is driven either by a belt drive or by a hydraulic pump which is driven by the loading machine. Alternatively, the generator can be driven by a separate diesel engine. With electrically driven loading machines, the magnets can be powered directly from the loading machine

- Conventional heavy DC generators
- AC generators with electronic control mode
- Emergency battery packs for magnet systems are available on request

Pictures of some options

Pictures of some options


Conventional heavy DC generators without electronic control		AC generators with electronic control


AC generators with electronic control		DC Generator with belt drive


Generator with hydraulic drive		Operation panel in cabinet with text display


DC Generator with belt drive system		DC Generator with belt drive system


Hydraulic Generator Drive System
